- 3MOA Green Dot Sight: The VOTATU PMD505-SG is a open reflex sight Compatible with RMS/RMSc footprint cut pistols and picatinny rail-mount. Featuring a GREEN 3 MOA aiming dot with a 21mm window for quick acquisition. Note: This PMD505-SG is NOT Multiple Reticle version, it only has a single green dot.
- 10 Illumination Settings: 10 bright settings, fully multi-coated lens that increase light transmission and clarity in any environment.
- Shake Awake : After about 225 seconds without sensing any motion, the sight will enter into sleep mode. Even the slightest movement will wake it up to the previous brightness setting.
- Convenient Tray Battery Compartment：The readily available CR1632 battery is side-loading, allowing for quick battery replacement without having to remove the sight from the firearm. No more Re-zeroing.
- Built To Last : This Red Dot Sight housed in durable yet lightweight aircraft-grade aluminum for use in any environment. IPX7 waterproof, fogproof and shockproof construction.

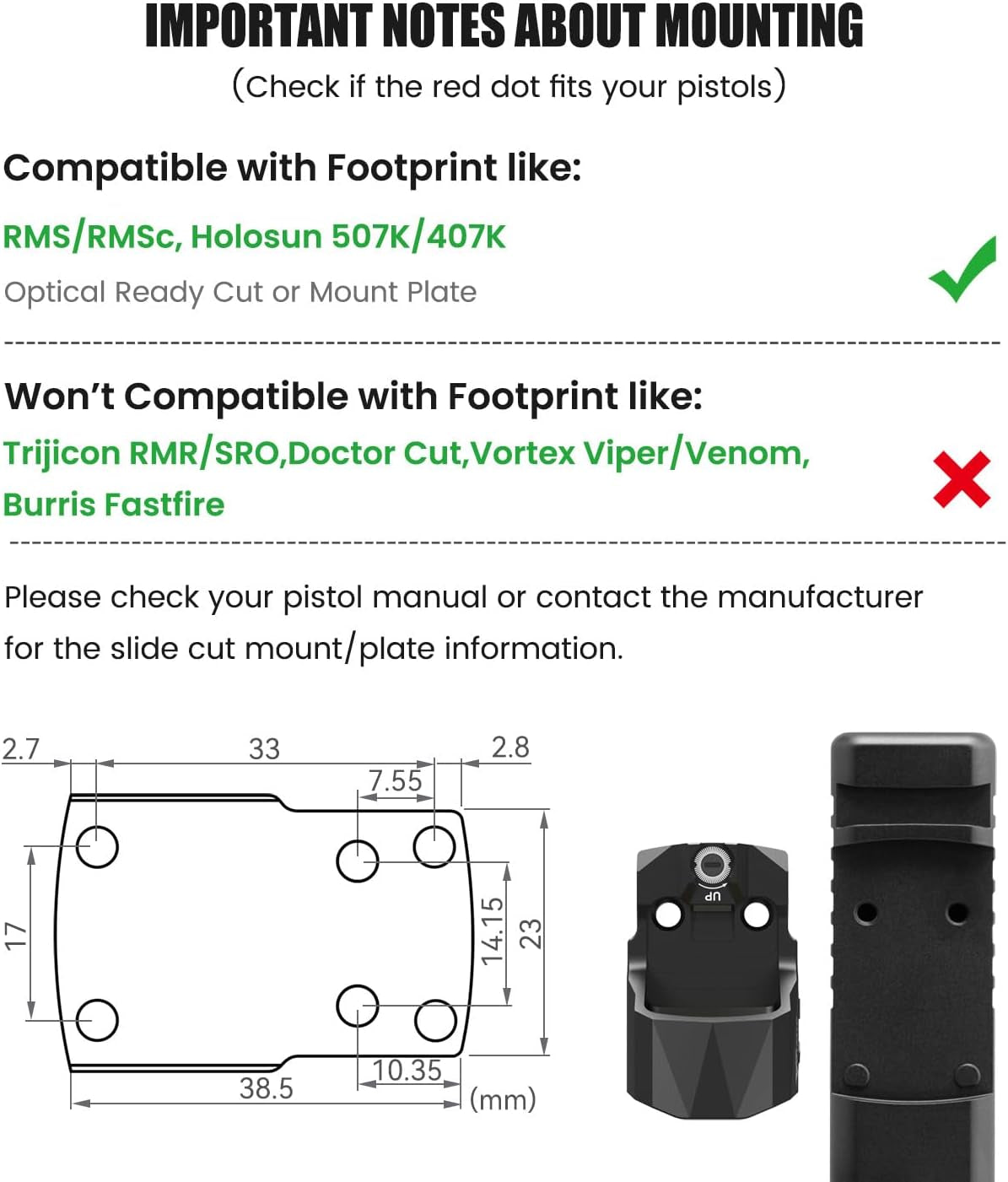

- Fits pistols with RMS/RMSc cut footprint or picatinny rail (picatinny mount included), If you do not know what slide cut/mounting plate your pistol has, please check pistol manual or contact the manufacturer. **The PMD505-SG does NOT compatible with RMR, Doctor cut footprints.
- Any mount that is compatible with Holosun 507K/407K red dots will work with PMD505-SG as they share the same footprint.
- This product includes the screw pack #6-32x0.374" (Effective Length: 9.5mm), M3x0.5 (Effective Length: 12mm), M4x0.7(Effective Length: 10.1mm), M4x0.7(Effective Length: 8.6mm). Please verify compatibility with your device before installation.
Product description
Compatibility Alert&Reference

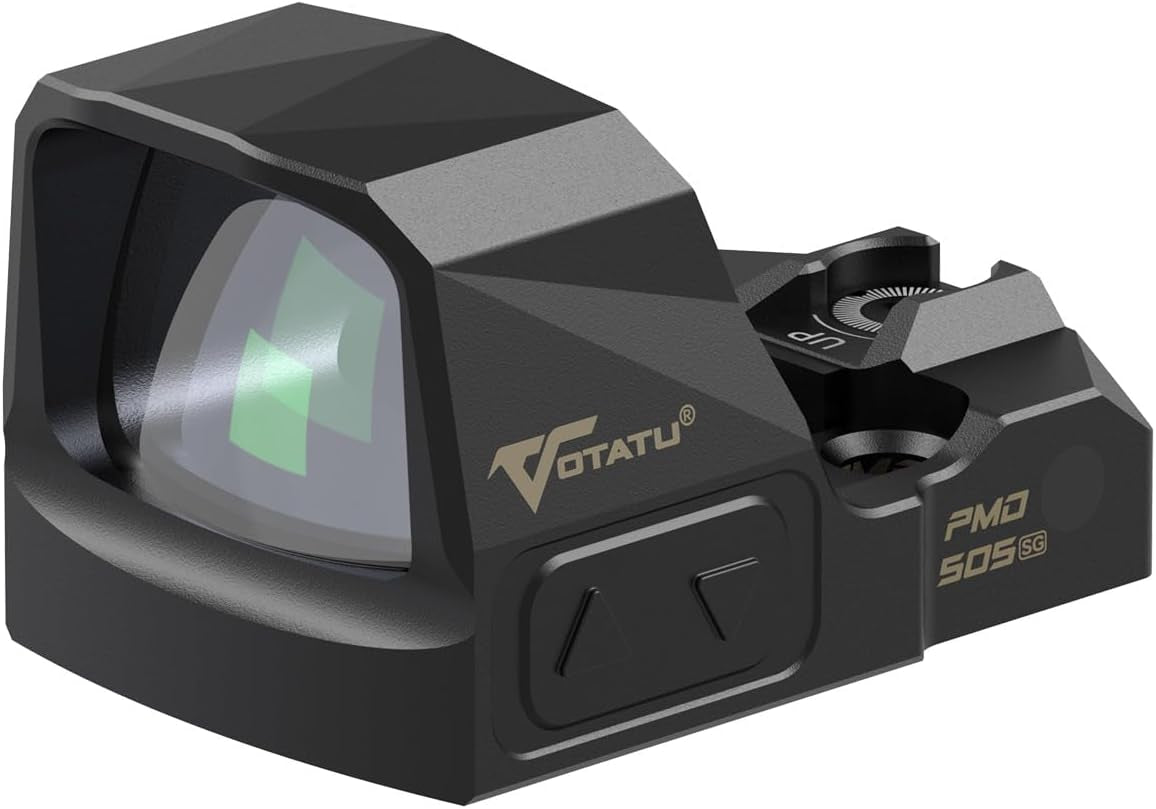

VOTATU PMD505-SG Micro Green Dot Sight
The VOTATU PMD505-SG features a 3 MOA Green dot with 10 brightness settings for fast acquisition. Powered by a CR1632 that is side-loading with up to 50,000 hour battery life. Equipped with Shake Awake function, the unit will automatically enter into sleep mode after about 225 seconds without sensing any motion, even the slightest movement will wake it up to the previous brightness setting, This PMD505-SG mirco optic is designed for pistols with RMS/RMSc slide cut and 507K/407K red dot footprint, also can be mounted on picatinny rail (pic mount included) . The housing is made from strong 7075 aluminum material, shockproof, IPX7 waterproof. **Note: This PMD505-SG is NOT Multiple Reticle version, it only has a single green dot.
Super Green LED Dot.
Motion Activated Illumination System.
10 Daylight and Nighttime Compatible Brightness Settings.
High Grade 7075 Aluminium Housing.
Compatible with RMS/RMSc Slide Cut or Holosun 407k/507k Footprint.
Picatinny Mount Included.
Unlimited Eye Relief.
Fully Multi-Coated.
IPX7 Waterproof.
SPECIFICATIONS
| Lens Diameter | 16x21mm |
| Dot Size | 3 MOA |
| MOA Adjustment | Dial |
| Reticle | Dot |
| Reticle Color | Green |
| Parallax Range | ≤2moa |
| Eye Relief | Unlimited |
| Lens Coating | Multi-Coated |
| Shockproof G Forces | 1500Gs |
| Waterproof | 1 Meter/ IPX7 |
| Battery Type | CR1632 |

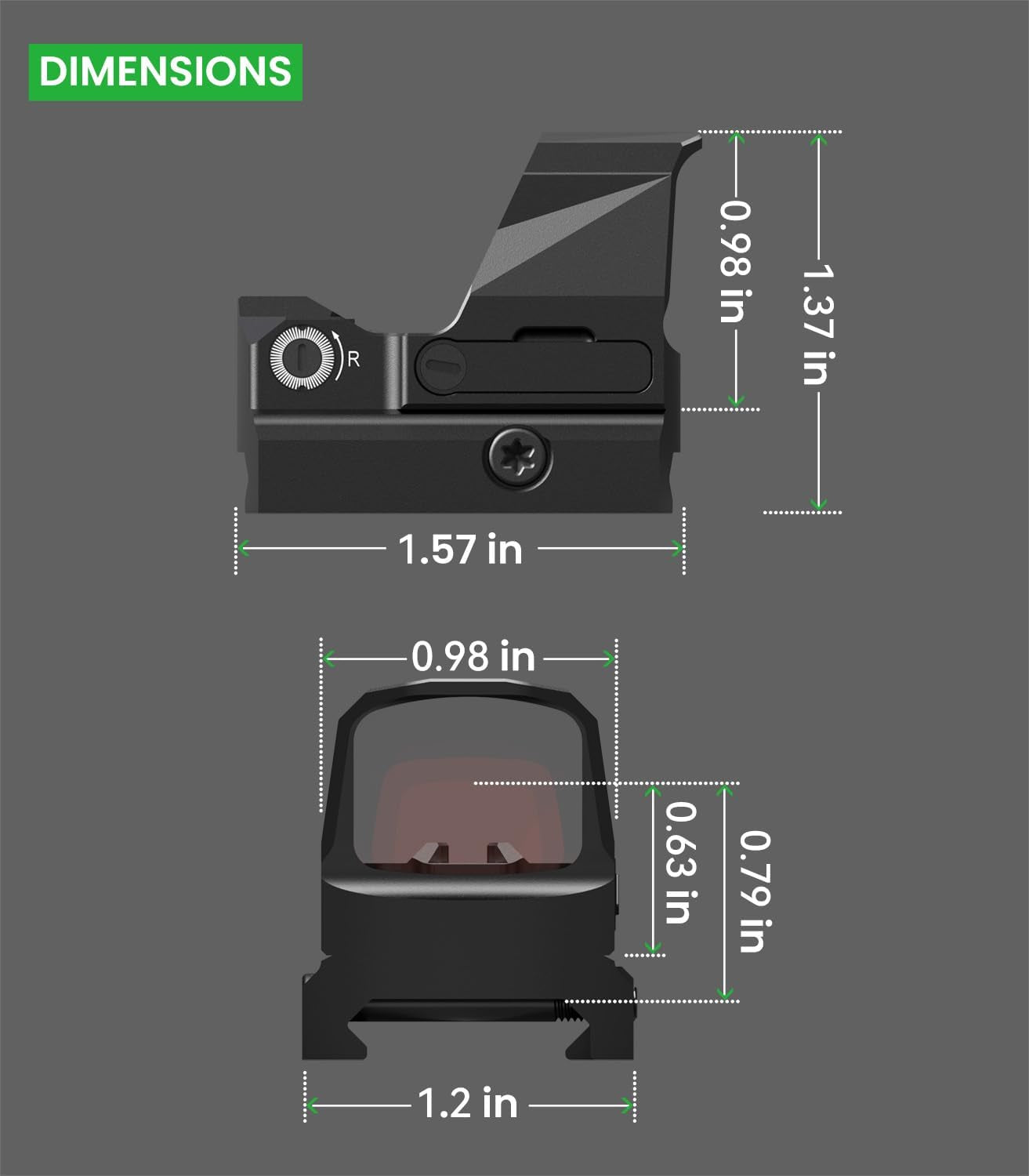

| Dimensions | 1.57x1x0.98inch/40x27x25mm(red dot only) |
| Weight | 29g/1oz(red dot only) |
| Mount Type | RMS/RMSc or Picatinny |
| Windage/Elevation Click Value | I MOA/Click @ 100yds |
| Windage/Elevation Movement | +/- 45 MOA/ Total 90 MOA Range |
-
Critical Installation Notice for SIG P365 Series
Required Screw Modification:
For P365 OR/XL/XMACRO models, use the included M3×0.5x12mm screws and precision-cut them to an effective thread length of 9.0mm (not total length).
-
What screws are needed for installation?
Please refer to the compatibility reference table. If provided screws do not fit your setup, contactus immediately via Amazon Messaging.
Note: Specific optics mounting plates require specialized screws that are not included in this package.
-
What pistols/slides are compatible with the PMD505-R sight?
Slides with RMS/RMSc footprint or Holosun 407K/507K-compatible systems
-
Is the RMS/RMSc mounting plate included?
Not Included, Non-RMS/RMSc slides require a separate mounting plate, you'll need to purchase separately.
VOTATU OPTICS
| Customer Reviews | 4.2 out of 5 stars 140 | 4.2 out of 5 stars 190 | 4.2 out of 5 stars 564 | 4.4 out of 5 stars 292 | 4.3 out of 5 stars 93 | 4.5 out of 5 stars 80 | 4.5 out of 5 stars 92 |
| Price | $119.99$119.99 | $130.99$130.99 | $113.99$113.99 | $106.99$106.99 | $103.99$103.99 | $125.99$125.99 | $149.99$149.99 |
| Reticle Color | Green | Red | Red | Green | Red | Red | Green |
| Reticle Pattern | 3MOA Dot | Multiple Reticle | Multiple Reticle | 3MOA Dot | 3MOA Dot | Multiple Reticle | Multiple Reticle |
| Mount Type | RMS/RMSc Footprint & Picatinny | RMS/RMSc Footprint & Picatinny | RMR Footprint & Picatinny | RMR Footprint & Picatinny | RMR Footprint & Picatinny | Doctor Footprint & Picatinny | Doctor Footprint & Picatinny |
| Shake Awake | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
| Waterproof | IPX7 | IPX7 | IPX7 | IPX7 | IPX7 | IPX7 | IPX7 |
| Battery Type | CR1632 | CR1632 | CR1632 | CR1632 | CR1632 | CR1632 | CR1632 |
| Battery Life (Hours) | 50000 | 50000 | 50000 | 50000 | 50000 | 50000 | 50000 |
| Brightness Setting | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Dimensions | 1.57x1x0.98inch/40x27x25mm | 1.57x1x0.98inch/40x27x25mm | 1.77x1.1x0.98inch/45x28x25mm | 1.77x1.1x0.98inch/45x28x25mm | 1.77x1.1x0.98inch/45x28x25mm | 1.9x1x1.3inch/49x28x32mm | 1.9x1x1.3inch/49x28x32mm |
| Weight | 29g/1oz | 29g/1oz | 35g/1.23oz | 35g/1.23oz | 35g/1.23oz | 37g/1.3oz | 37g/1.3oz |
